The hardware that goes around a module. Every carrier below is a reference design that ships as a product, so a prototype and a production unit are the same board.

Carrier boards

A carrier breaks the module out to connectors, and it is the part most customers modify. The reference layout is the starting point for a custom board rather than a demo to be thrown away.

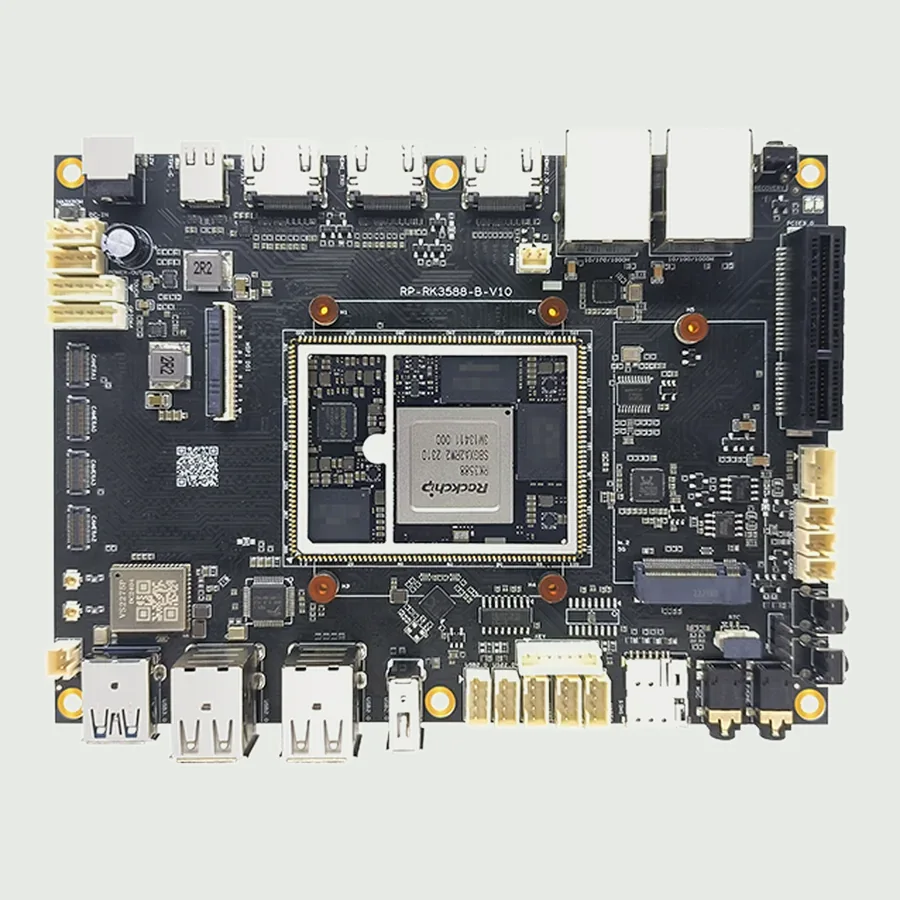

  • RP-RK3588

    Rockchip RK3588

    Reference carrier for the RK3588 module. Two gigabit ports, HDMI in and out, PCIe, SATA, four USB.

    6 TOPS NPU

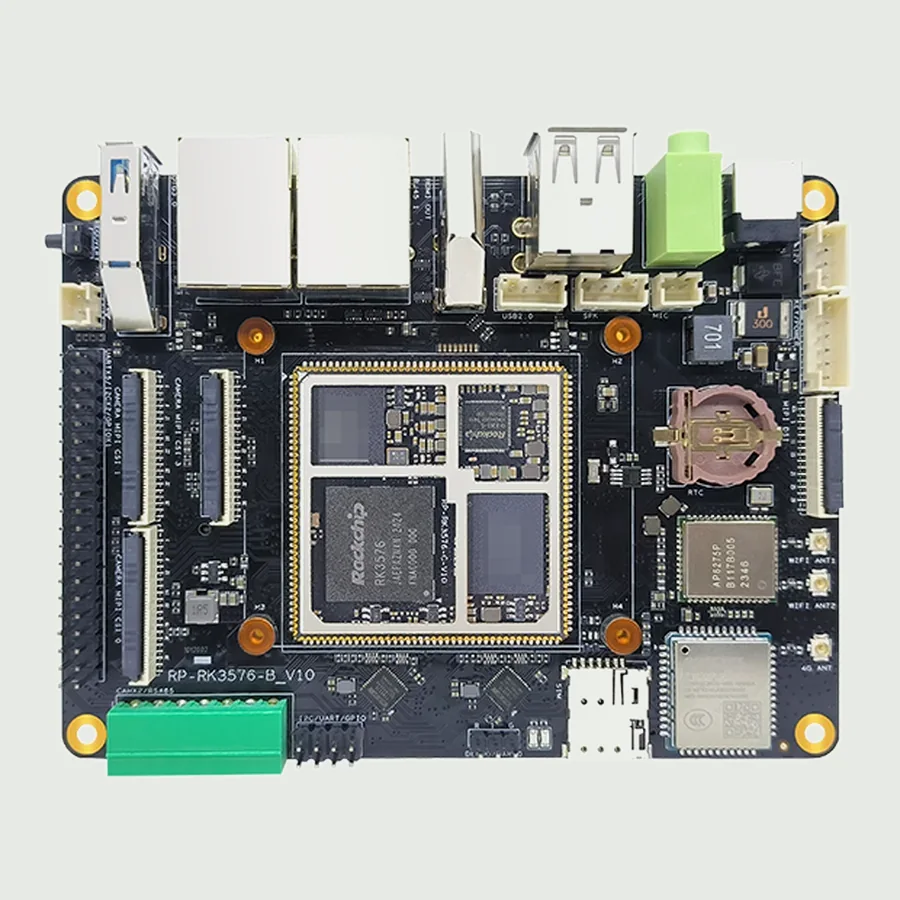

  • RP-RK3576

    Rockchip RK3576

    Two gigabit RGMII ports, LPDDR5 up to 16 GB, 12 V input.

    6 TOPS NPU

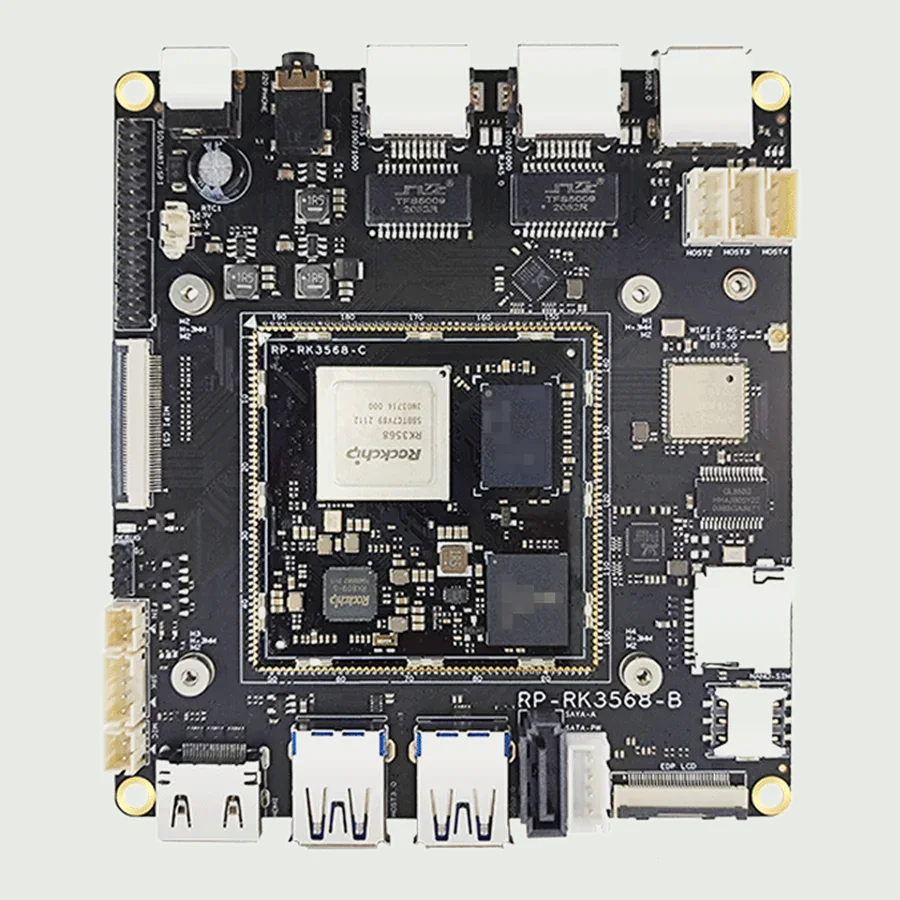

  • RP-RK3568

    Rockchip RK3568

    The workhorse carrier. Two gigabit ports on RGMII, 12 V input.

    100 × 110 × 14 mm

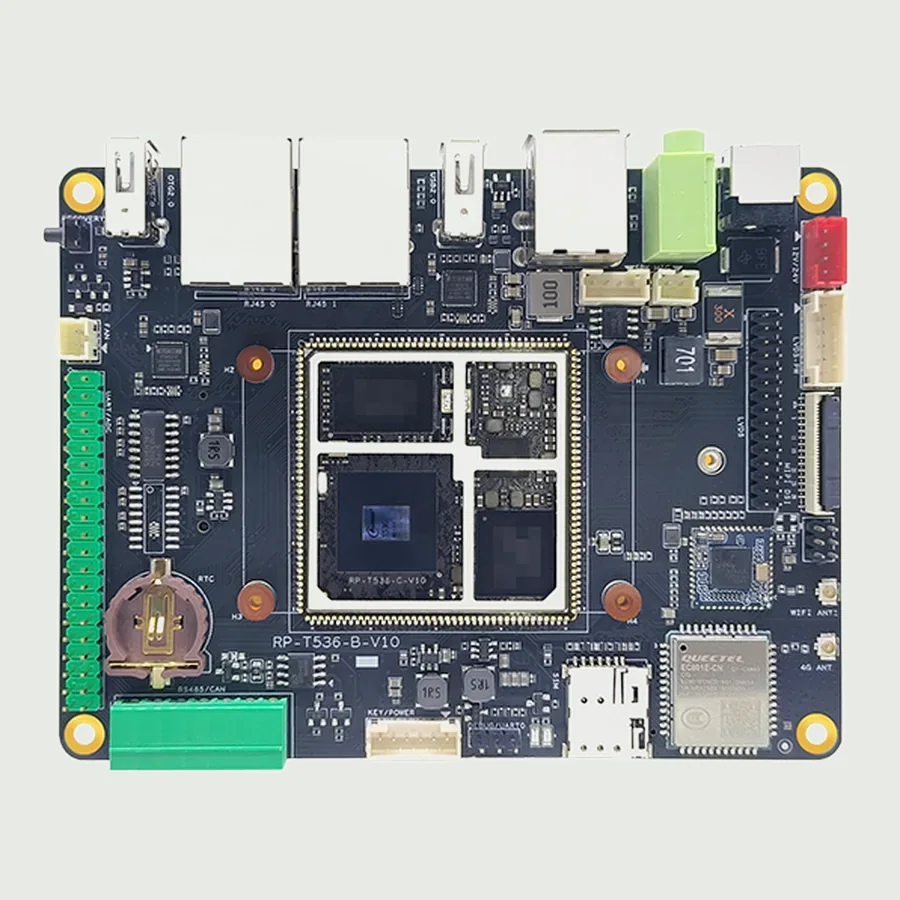

  • RP-T536

    Allwinner T536

    Two gigabit ports, under 6 W with nothing attached.

    120 × 90 × 19 mm

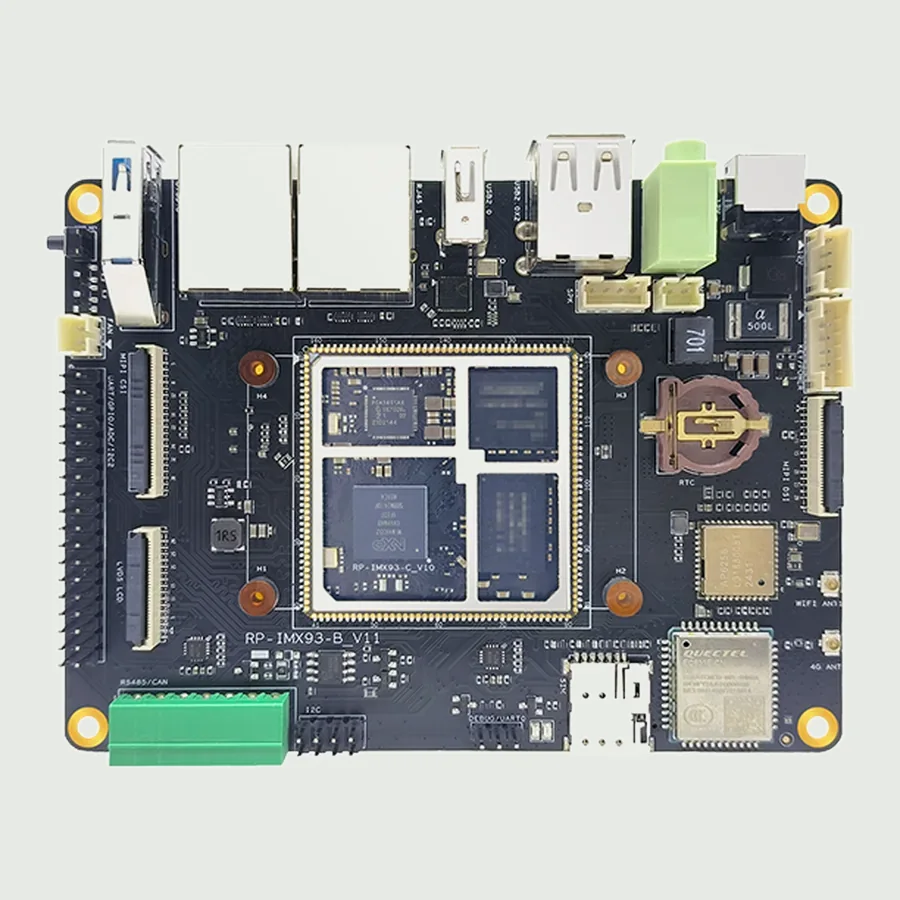

  • RP-IMX93

    NXP i.MX 93

    Two RTL8211F gigabit ports, 12 V at 1.5 A.

    120 × 90 × 18 mm

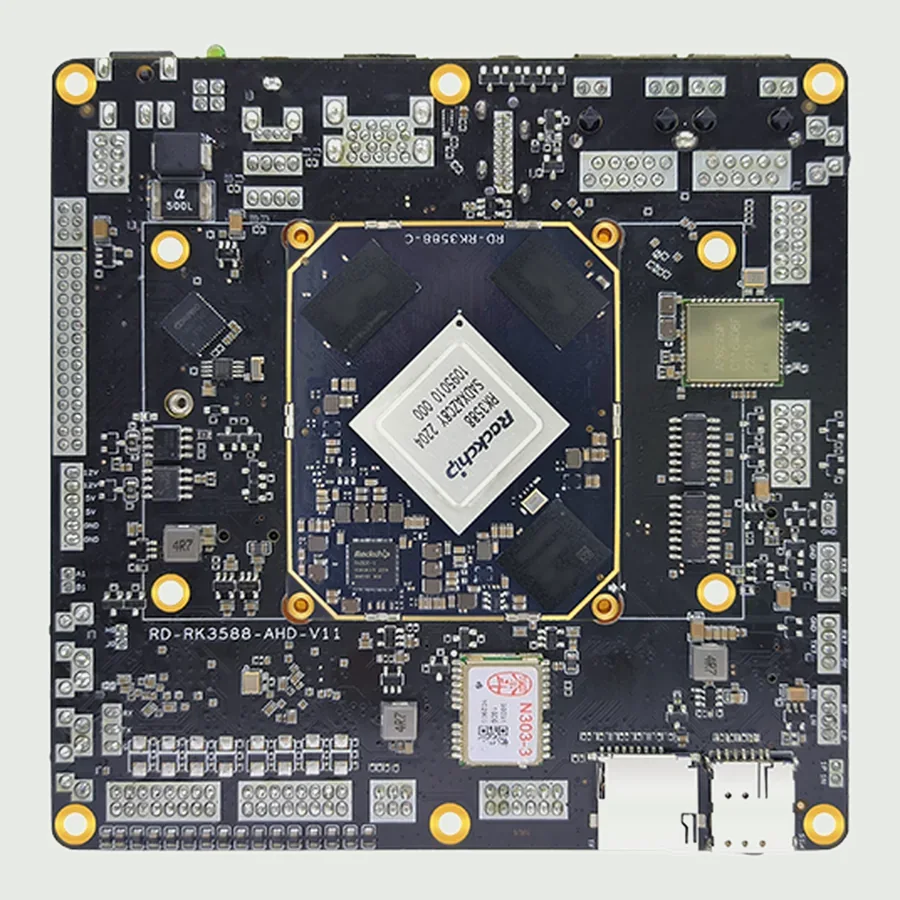

  • RD-RK3588-AHD

    Rockchip RK3588

    Analogue HD camera inputs for vehicle and retrofit work, two gigabit ports over PCIe and RGMII.

    AHD capture

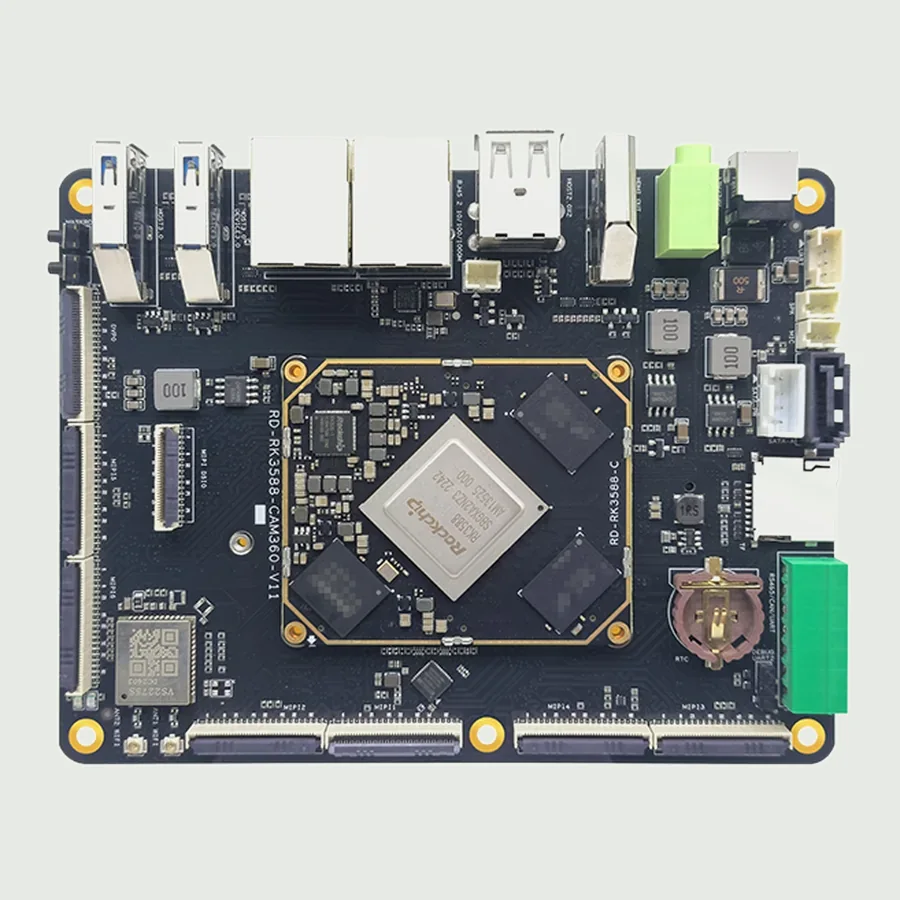

  • RD-RK3588-CAM360

    Rockchip RK3588

    Surround-view carrier. Memory configurable to 32 GB for multi-camera stitching.

    up to 32 GB

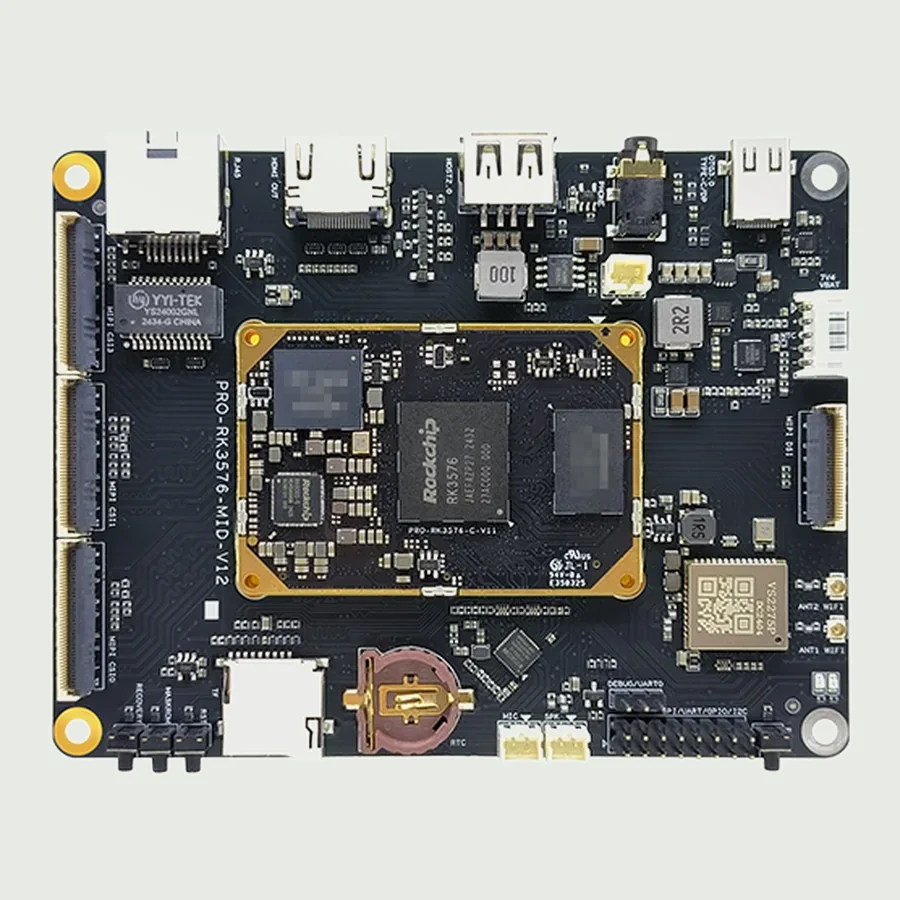

  • PRO-RK3576-MID

    Rockchip RK3576

    Tablet carrier. Accepts 5 V, 12 V or 20 V so it can sit behind a battery board.

    5 / 12 / 20 V in

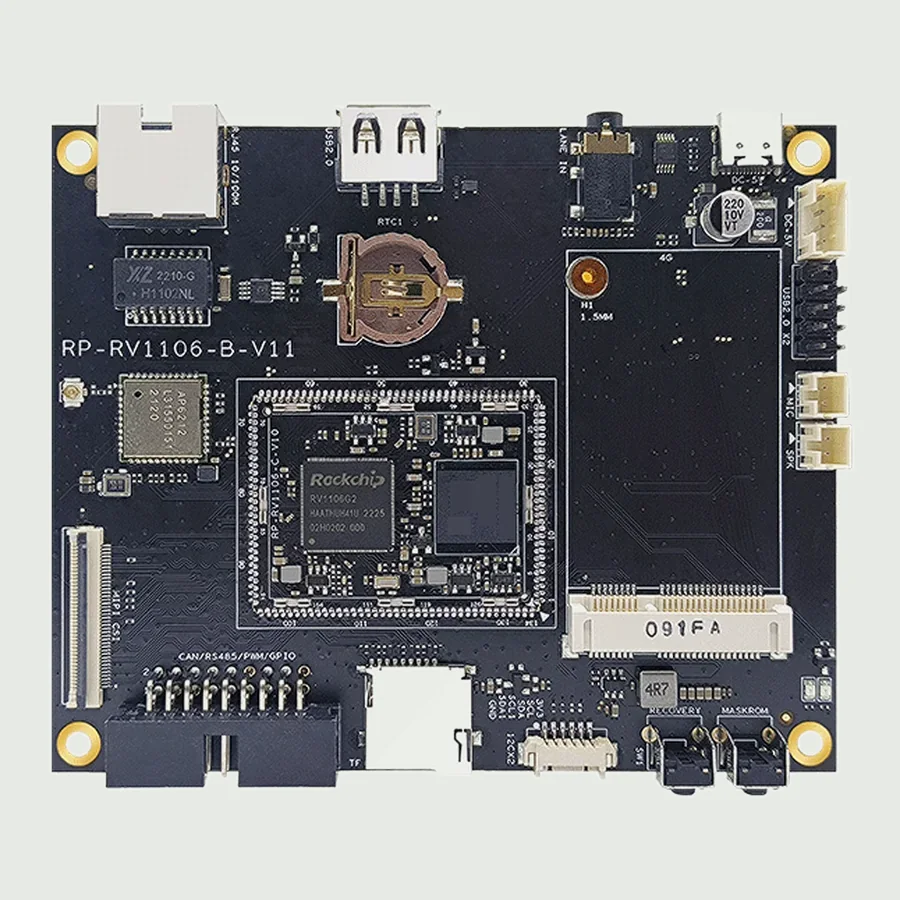

  • RP-RV1106

    Rockchip RV1106

    Camera carrier. Two MIPI CSI inputs, two controllable illuminators (one infrared, one white), four USB and dual-band WiFi.

    110 × 90 × 14 mm

Fanless box PCs

A module and carrier inside an aluminium enclosure, with the connectors on one face and no moving parts.

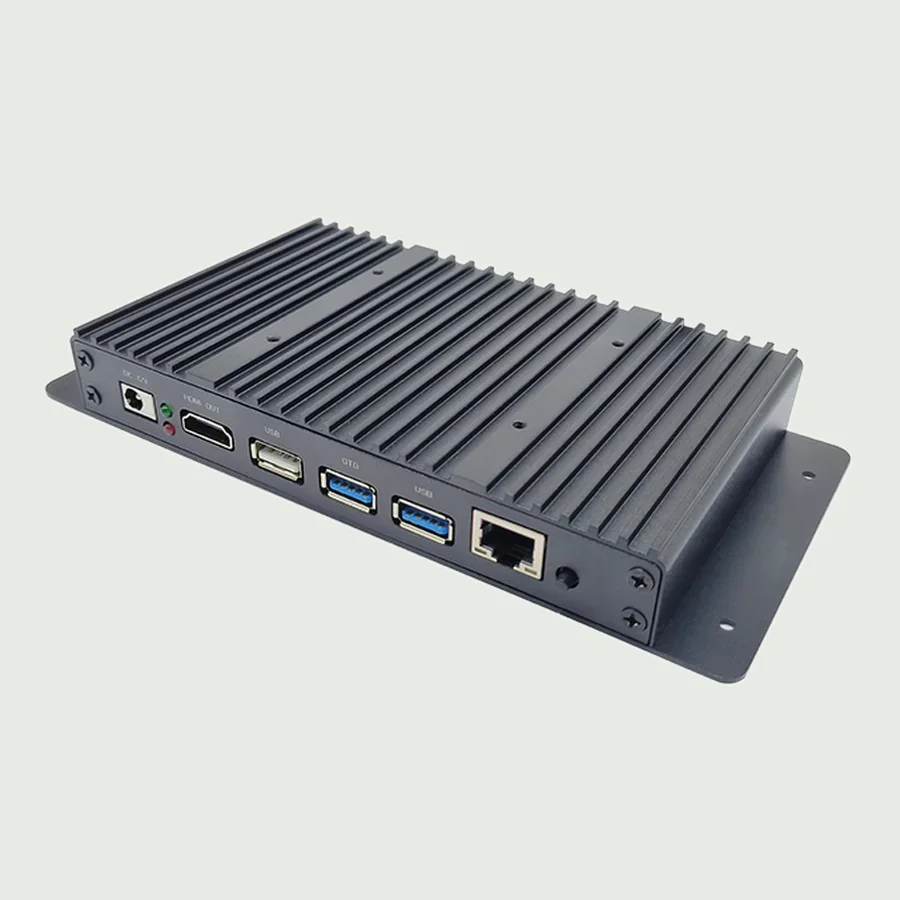

  • RP-BOX-RK3568

    Rockchip RK3568

    Six TTL serial ports, fifteen GPIO and two MIPI CSI inputs on internal headers. Android, Ubuntu, Debian, Buildroot and openKylin all boot on it.

    −10 to +75 °C

  • RP-BOX-RK3588J

    Rockchip RK3588J

    Fanless aluminium enclosure, wall or DIN mount, two gigabit ports, dual SMA antennas.

    −10 to +75 °C

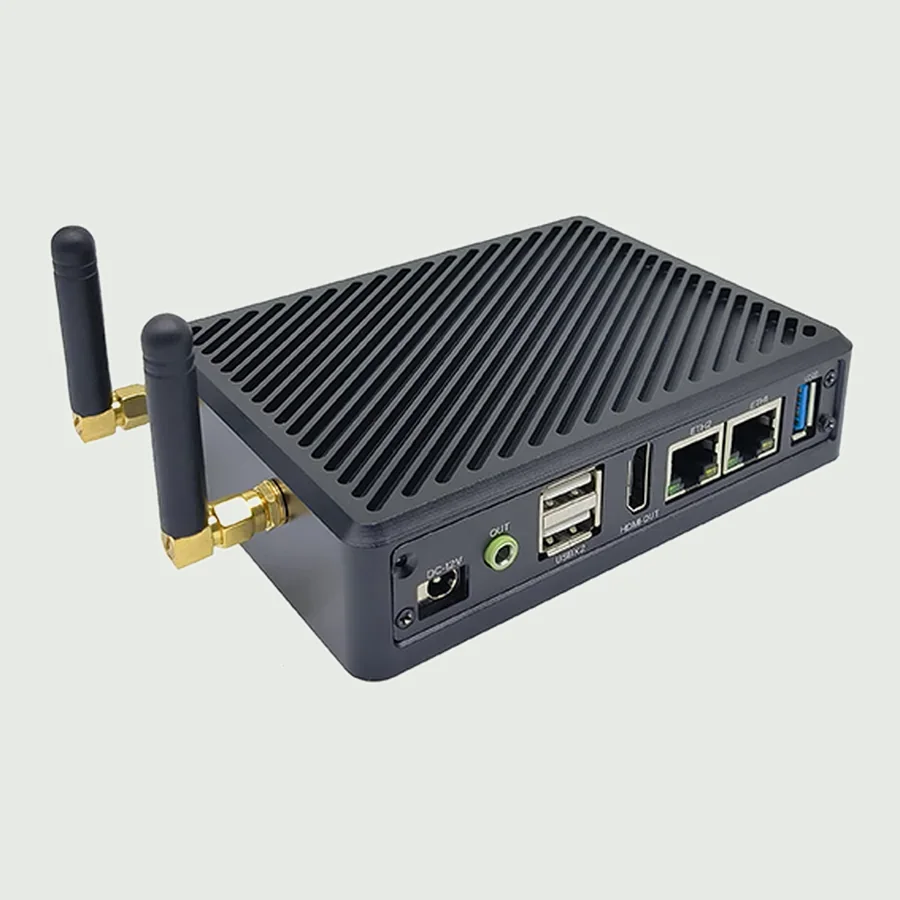

  • RP-BOX-RK3576

    Rockchip RK3576

    LPDDR4X 2 GB or LPDDR5 4 / 8 GB, eMMC 8 / 32 / 64 GB, two 100/1000M ports.

    −10 to +75 °C

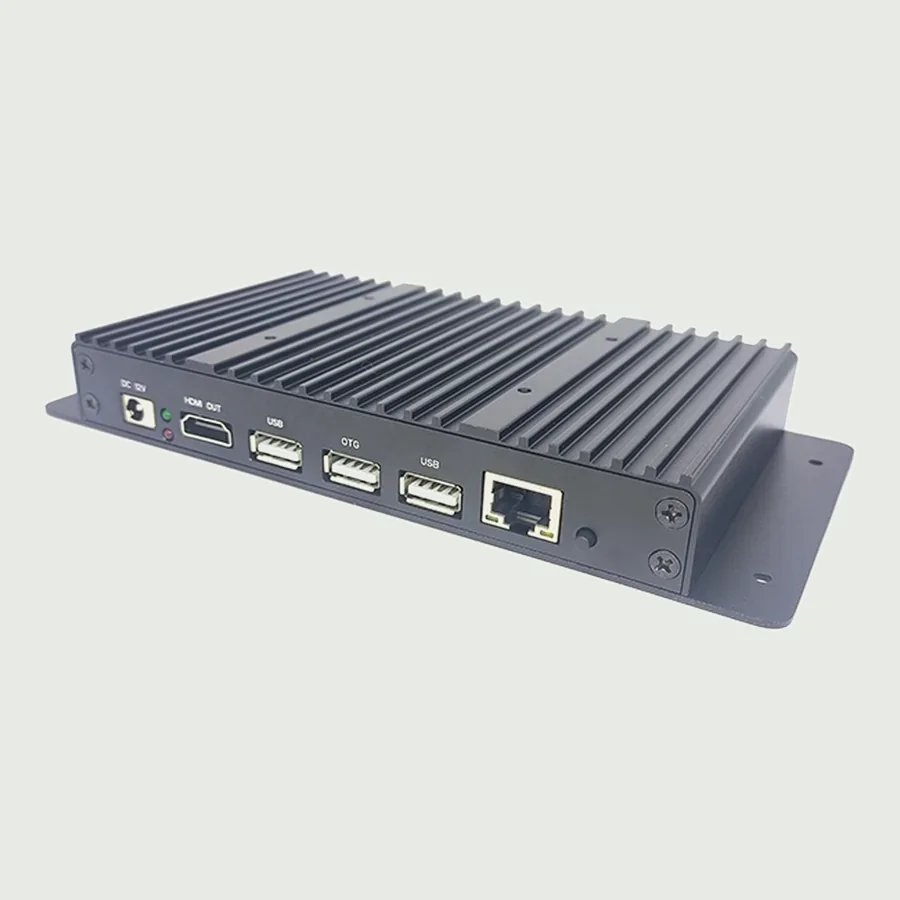

  • PRO-BOX-A527

    Allwinner T527

    Eight A55 cores at 1.8 GHz, eMMC 5.1 from 8 to 64 GB, two gigabit ports.

    −10 to +75 °C

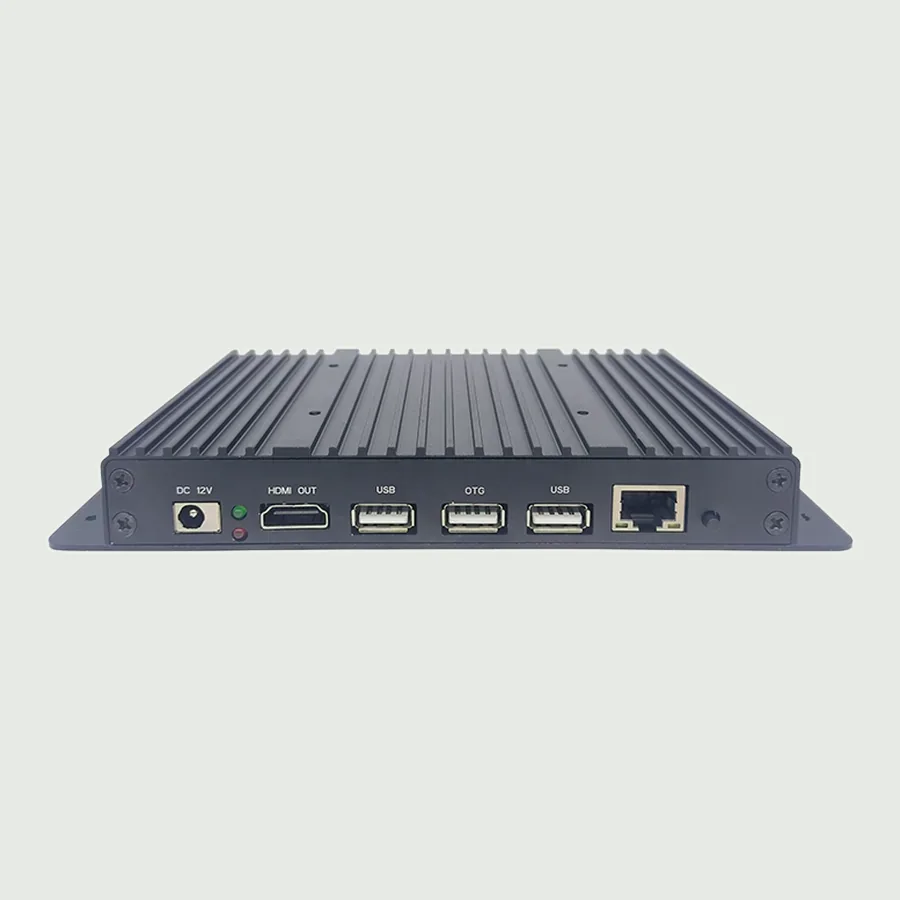

  • PRO-BOX-T527

    Allwinner A527

    Eight A55 cores at 2.0 GHz on RGMII0 and RGMII1.

    −10 to +75 °C

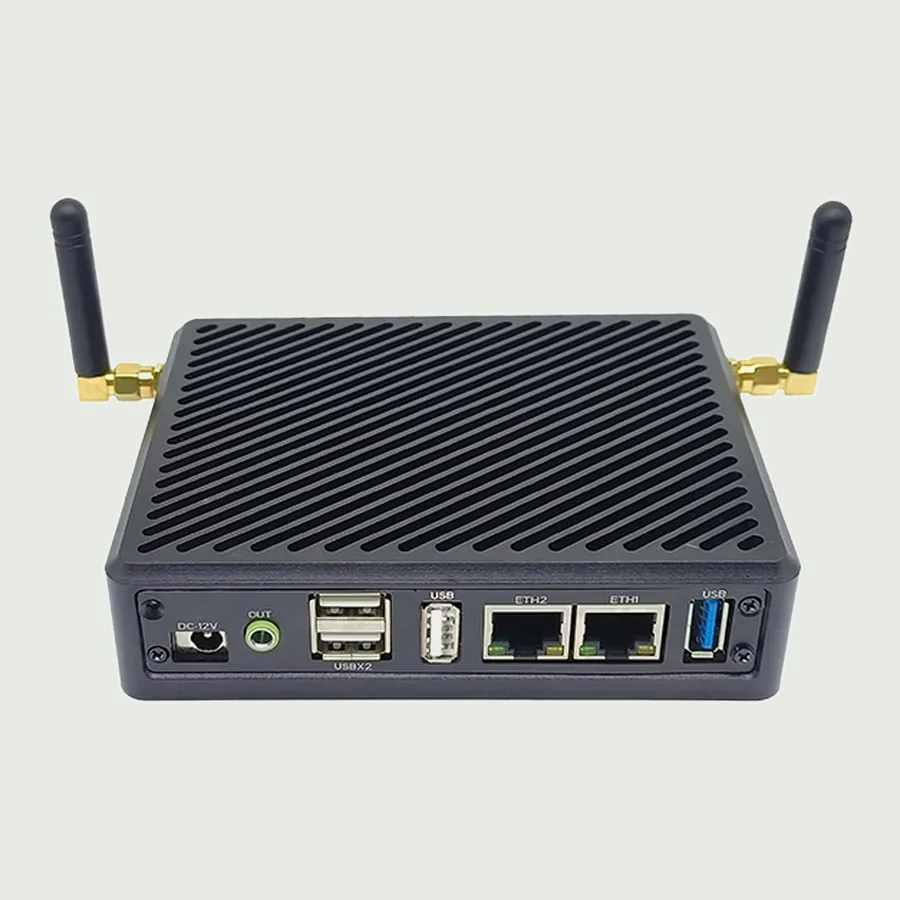

  • RP-BOX-IMX93

    NXP i.MX 93

    Two A55 cores, eMMC 5.1 from 8 to 64 GB, two 10/100/1000M ports.

    −10 to +75 °C

Android panel computers

Seven to 15.6 inches, landscape and portrait, ten-point capacitive touch bonded to the glass. The panel and the module are specified separately so the same screen can carry an RK3566 or an RK3588.

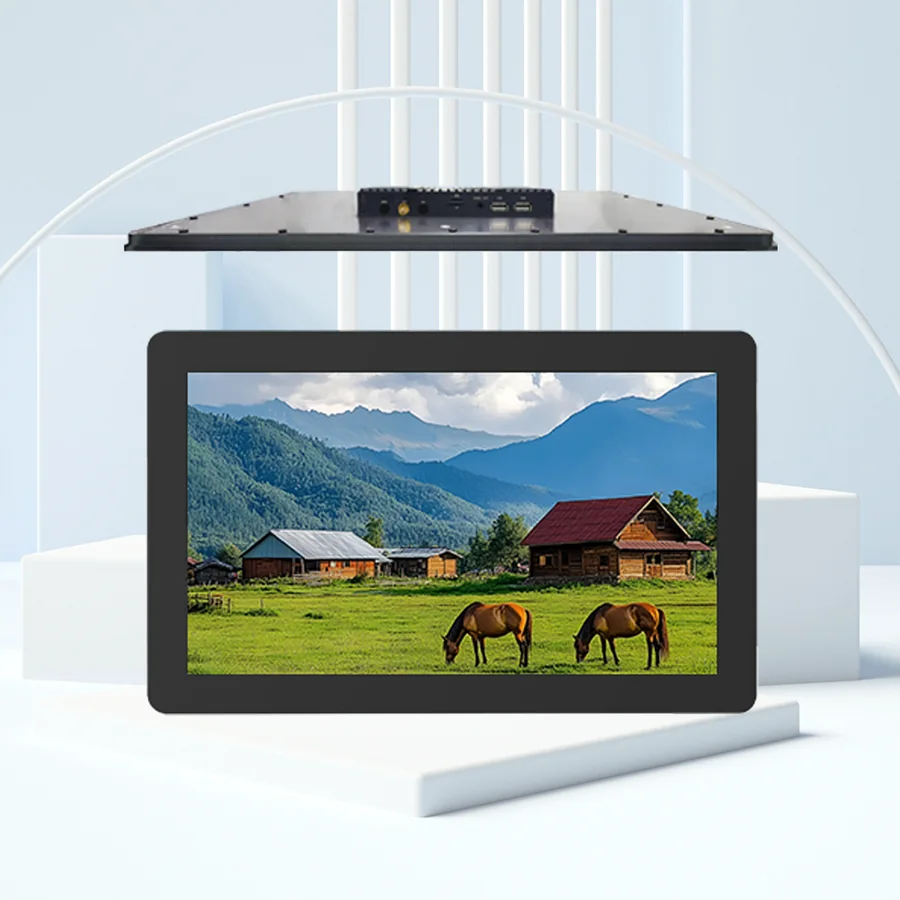

  • RK3588 / 15.6″

    Rockchip RK3588

    1920 × 1080, ten-point projected capacitive touch, 12 V input.

    6 TOPS NPU

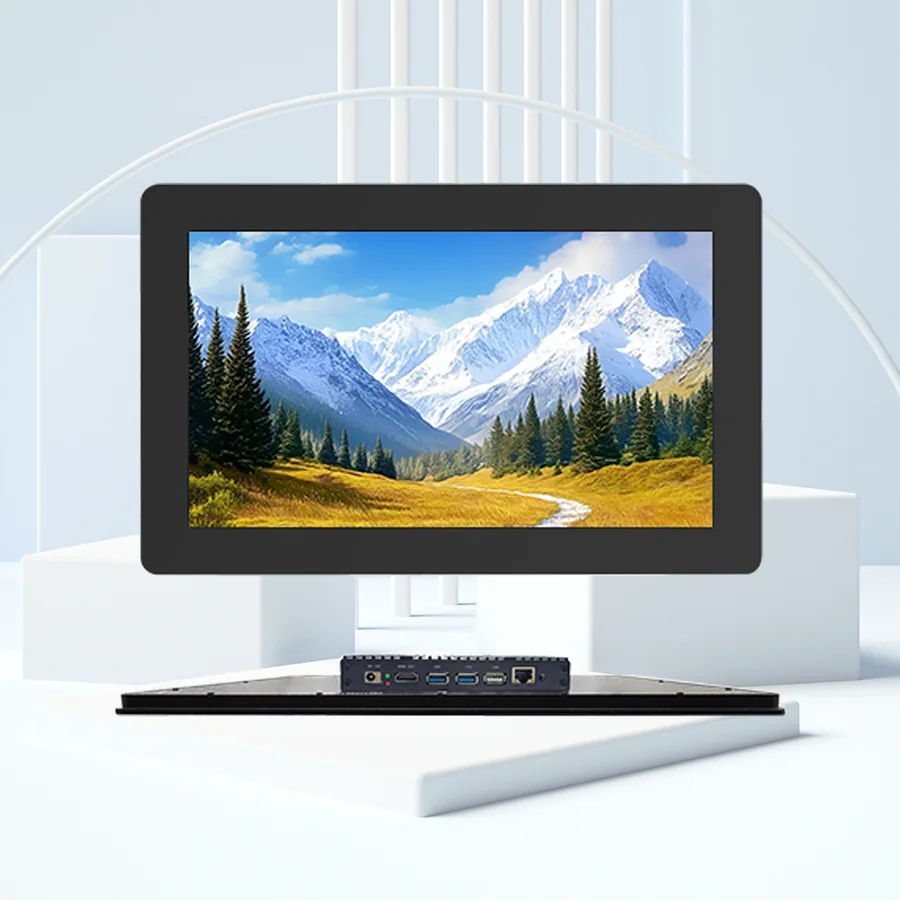

  • RK3588 / 13.3″

    Rockchip RK3588

    1920 × 1080. Draws 3 W on average, 4 W at peak.

    3 W average

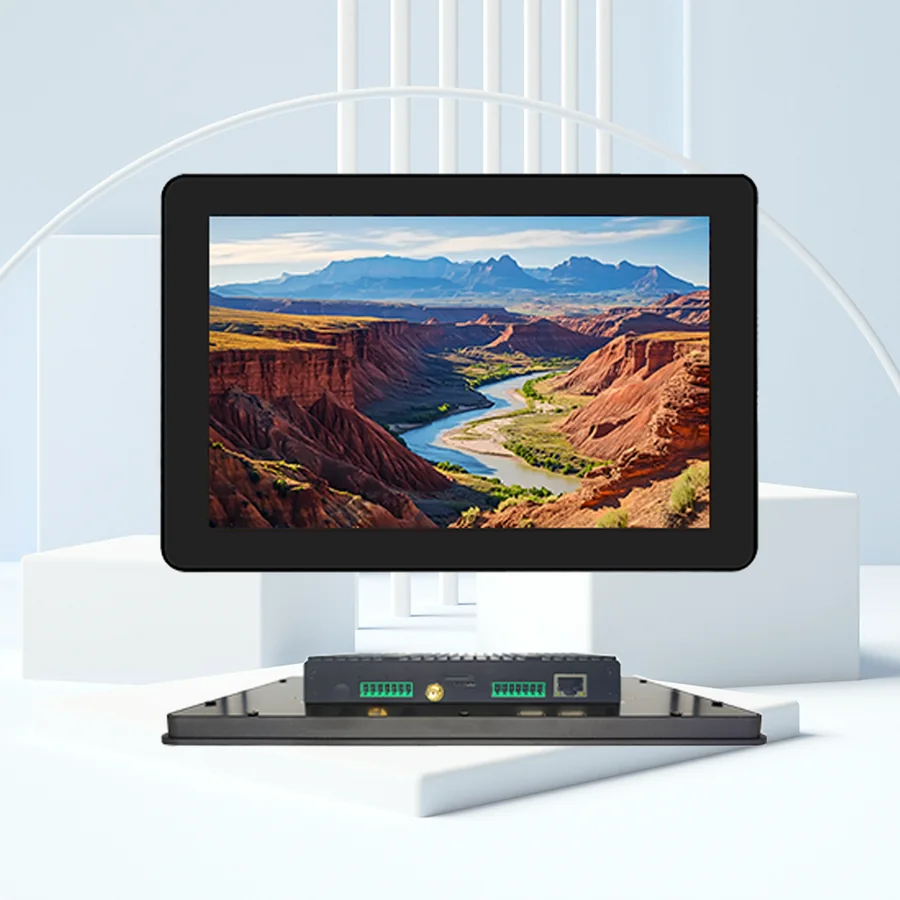

  • RK3588 / 10.1″

    Rockchip RK3588

    1920 × 1200. Draws 3.2 W on average, 3.73 W at peak.

    3.2 W average

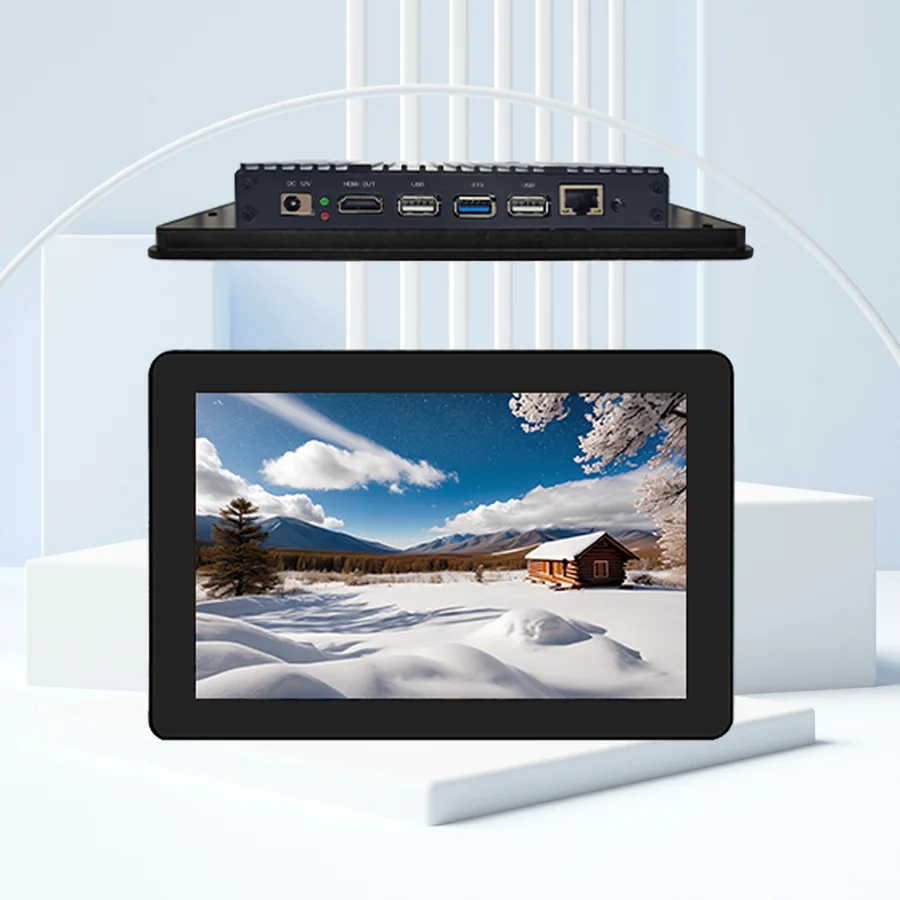

  • RK3576 / 10.1″

    Rockchip RK3576

    1920 × 1200, LPDDR4x up to 16 GB, two ethernet ports.

    6 TOPS NPU

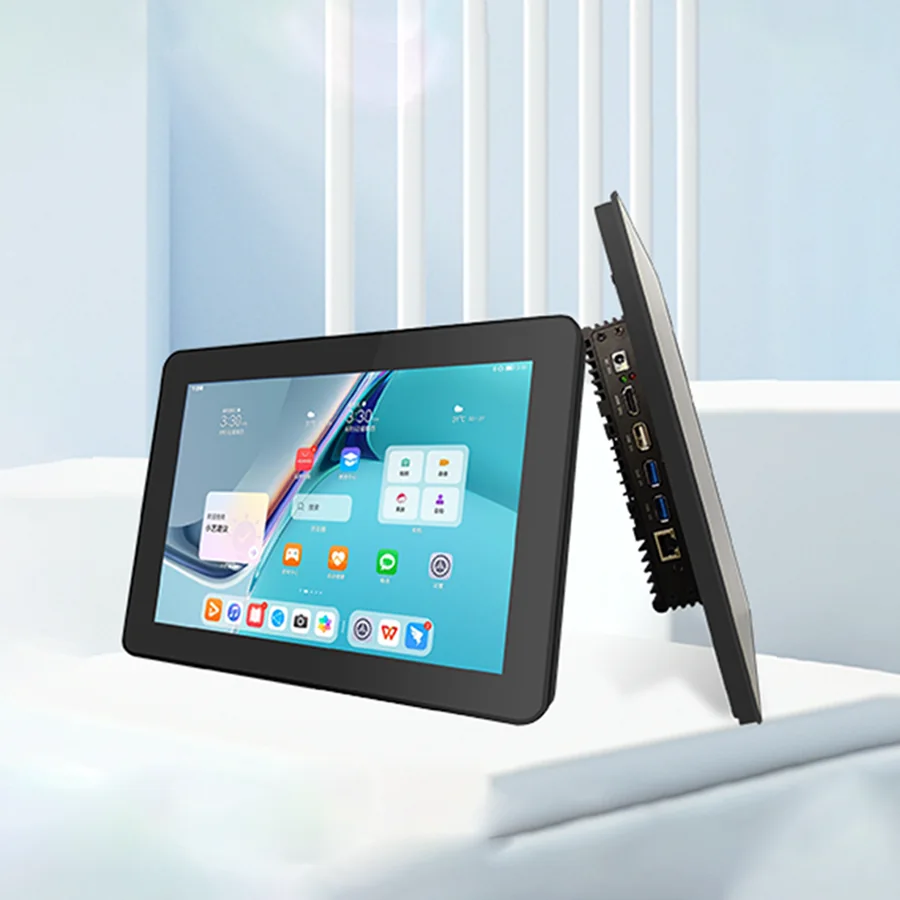

  • RK3568 / 10.1″

    Rockchip RK3568

    1920 × 1200, eMMC 8 / 32 / 64 GB, two 100/1000M ports.

    3.2 W average

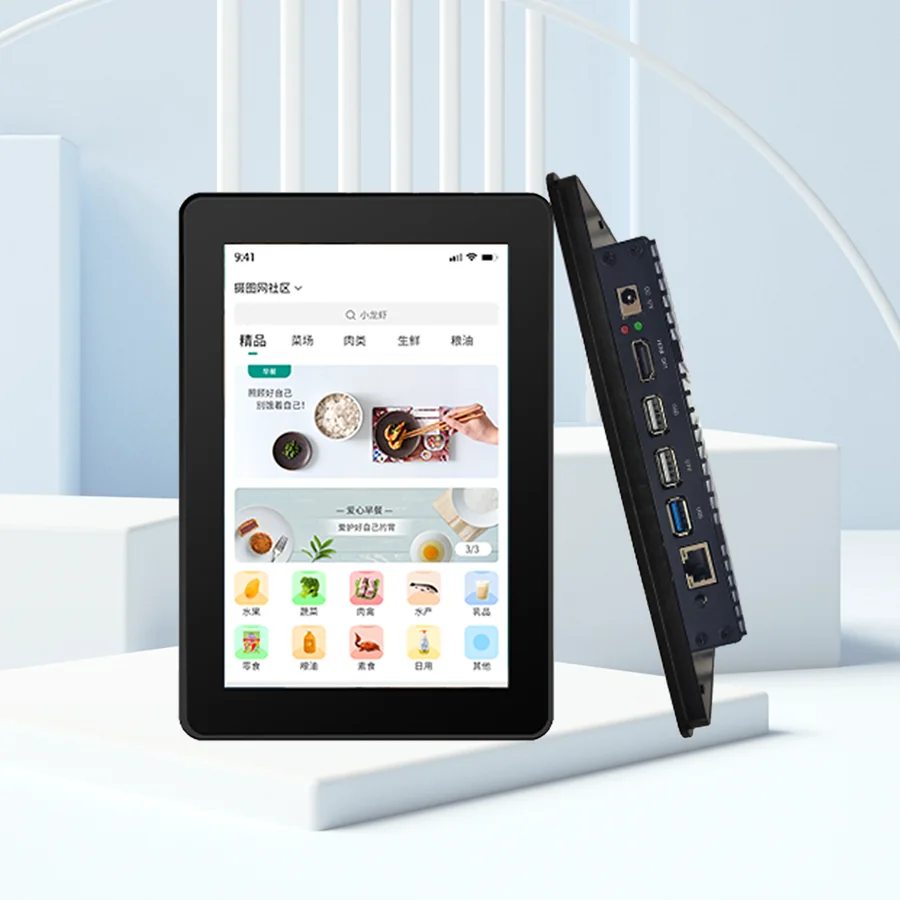

  • RK3566 / 8″

    Rockchip RK3566

    800 × 1280 portrait, 1.5 W on average.

    1.5 W average

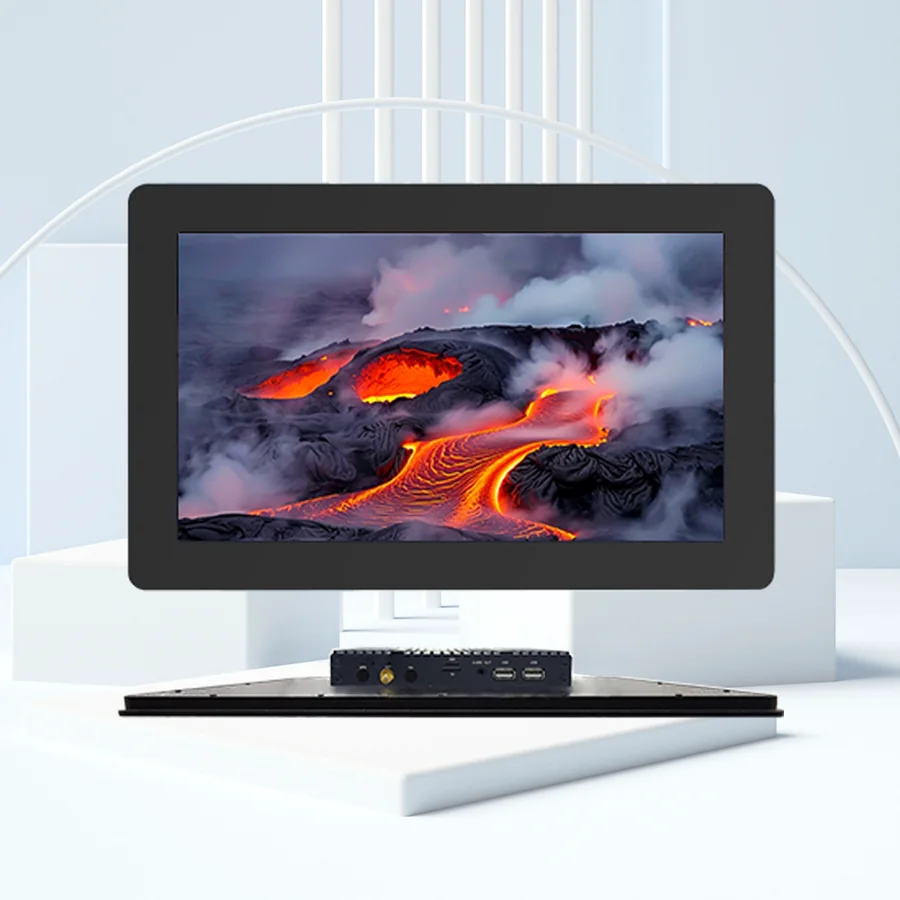

  • A527 / 13.3″

    Allwinner A527

    1920 × 1080 on eight A55 cores at 2 GHz.

    8 × A55

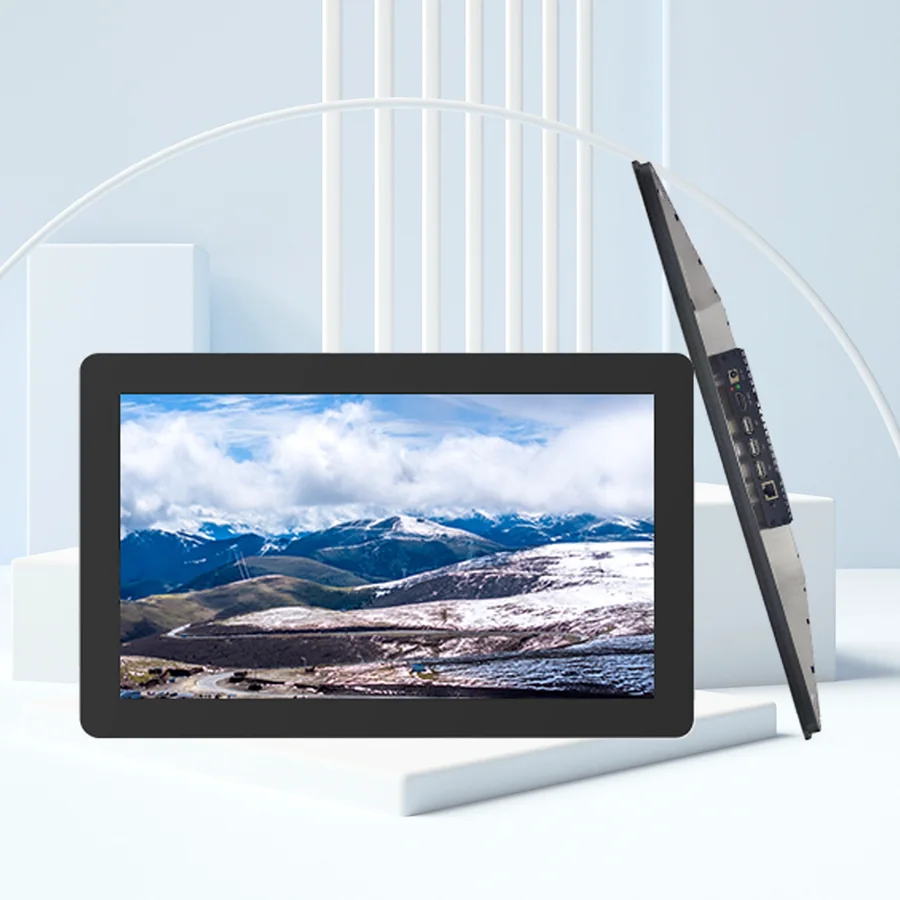

  • T527 / 15.6″

    Allwinner T527

    1920 × 1080, the largest panel in the range, on two gigabit ports.

    2 × gigabit

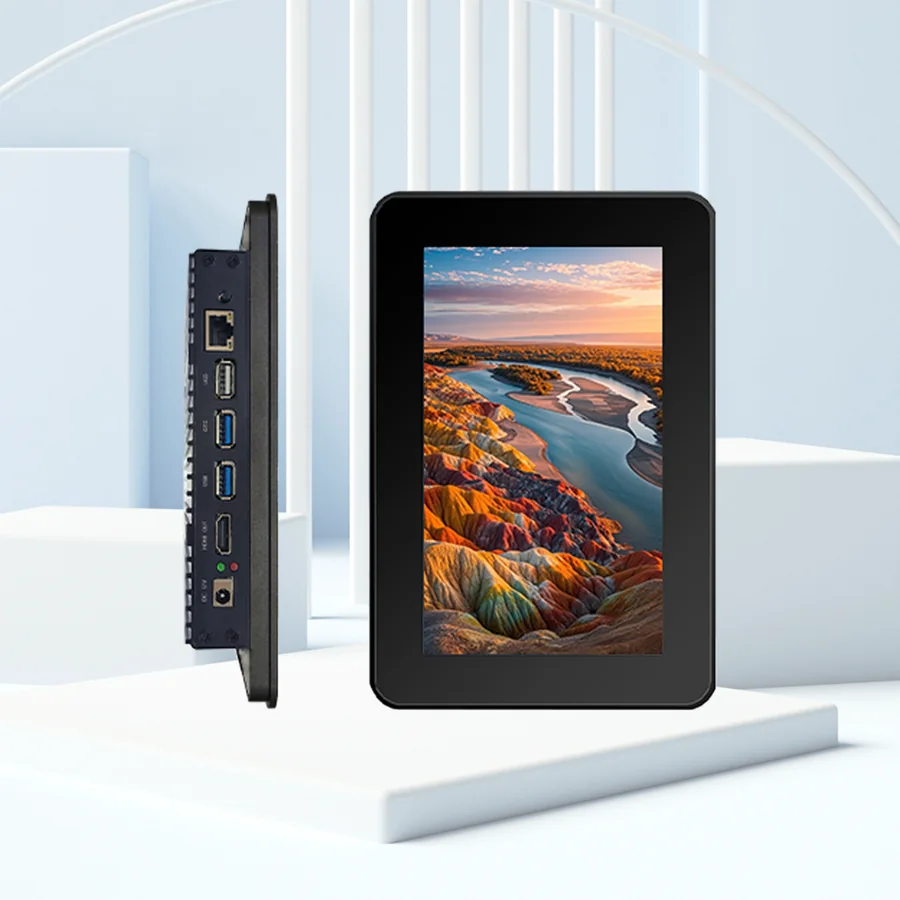

  • RK3588 / 7″

    Rockchip RK3588

    720 × 1280 portrait. The whole panel draws 1.1 W.

    1.1 W

Serial-port displays

A seven-inch touch panel with the computer behind it, sold as one finished unit. Both share the same 188.8 mm enclosure, so the choice is only how much processor sits inside.

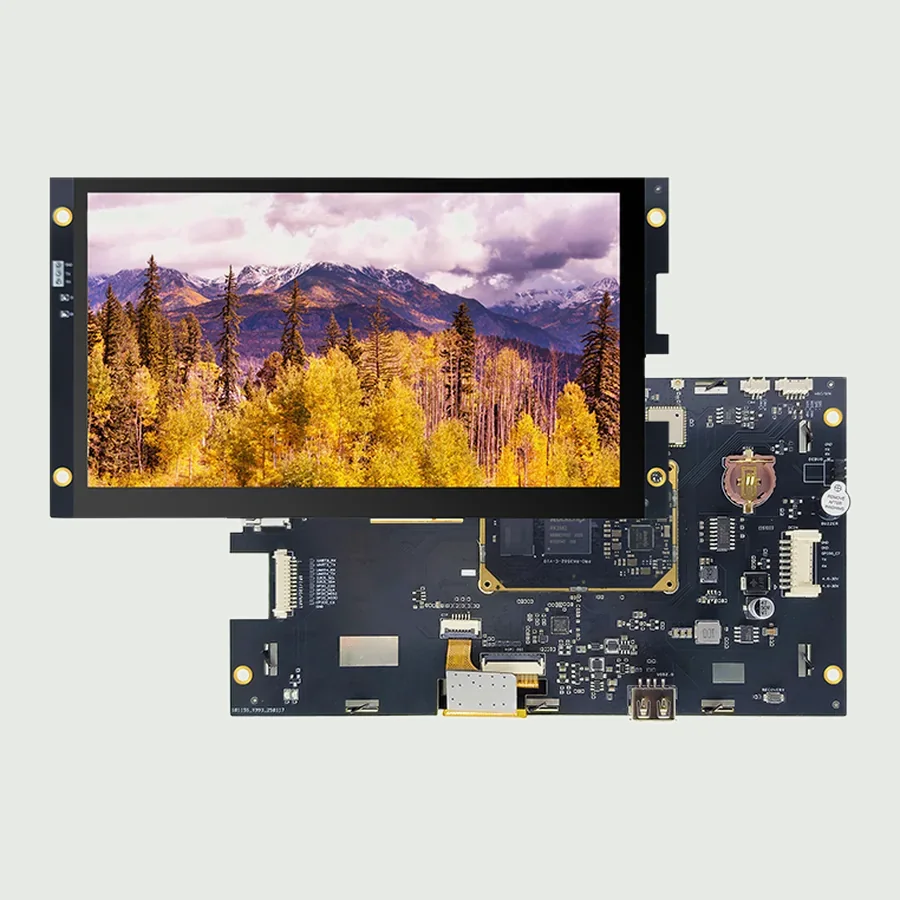

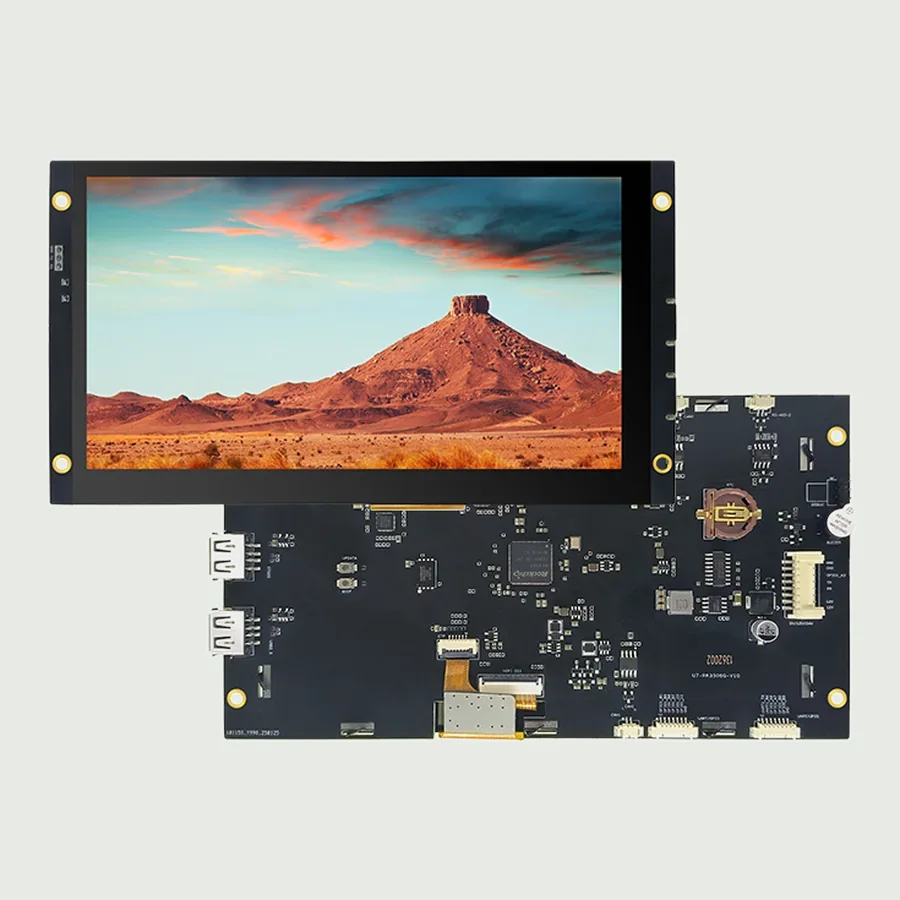

  • U7-RK3506G

    Rockchip RK3506

    Three A7 cores at 1.5 GHz behind a 7″ 1024 × 600 touch panel, with two CAN and two RS485 ports. Runs Buildroot Linux.

    −20 to +70 °C

  • PRO-RK3562-U7

    Rockchip RK3562

    The same 7″ enclosure with four A53 cores at 2 GHz, up to 4 GB of LPDDR4 and a gigabit port. Android or Linux.

    −20 to +70 °C

Access terminal

A five-inch face terminal built as a finished product rather than a kit. Wiegand and relay outputs are on the board.

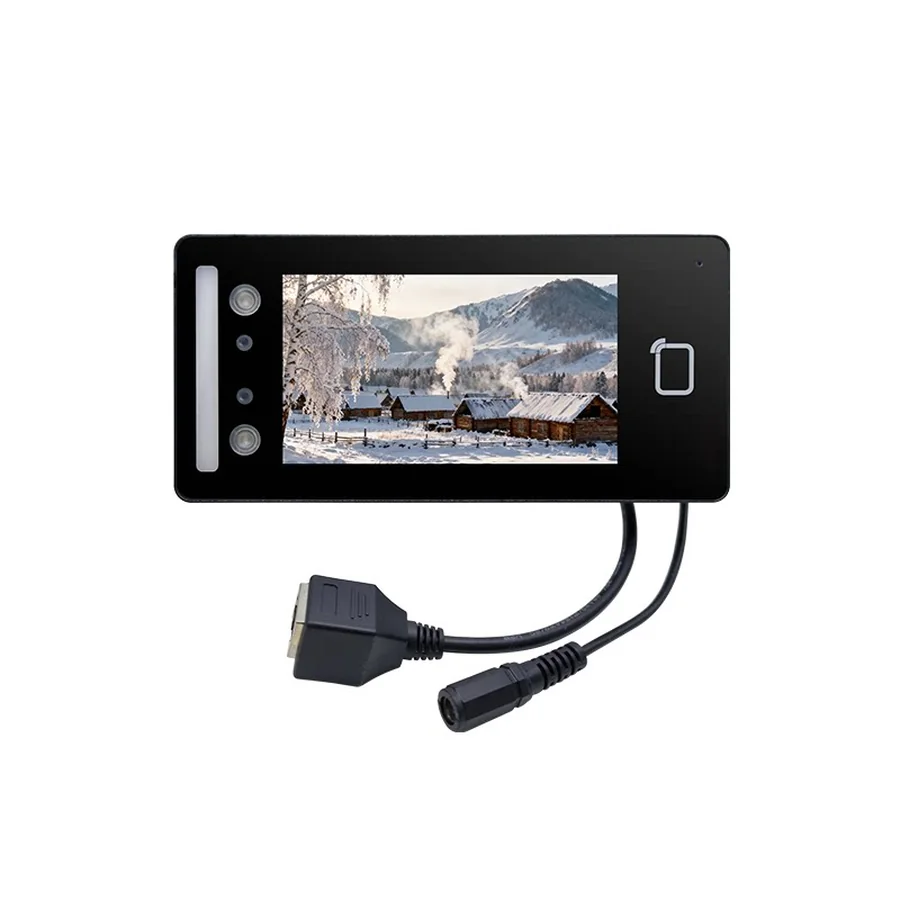

RV1106G3 / 5″

Processor
RV1106G3, 1 × A7 + MCU
NPU
1 TOPS
Display
5″ IPS, 720 × 1280, 550 cd/m²
Touch
10-point projected capacitive, 6H
Memory
DDR3 256 MB in package
Storage
SPI NAND 512 MB
Wiegand
2 outputs
Relay
1, plus tamper switch and 12 V doorbell feed
Power draw
0.8 W average, 1 W peak
Temperature
−10 to +60 °C
